Outbox Worker (CLI & TUI) ​

This worker is responsible for delivering publishable events from the transactional outbox to your message bus with retries, leasing, and cooperative partition processing.

The worker delivers publishable events from the Transactional Outbox to your bus with retries.

Command ​

bash
php artisan pillar:outbox:work   [--no-leasing] [--once] [--json] [--silent]   [--interval-ms=0] [--window=0]

Options

  • --no-leasing – Disable partition leasing (single‑worker mode). Best for local dev.
  • --once – Run a single tick and exit (useful in tests / cron‑style runs).
  • --json – Emit one JSON line per tick (structured logs).
  • --silent – Run without printing anything.
  • --interval-ms – Extra sleep between ticks; default 0ms.
  • --window – Aggregate stats over N seconds in interactive mode (shows running totals & next refresh timer).

Interactive UI ​

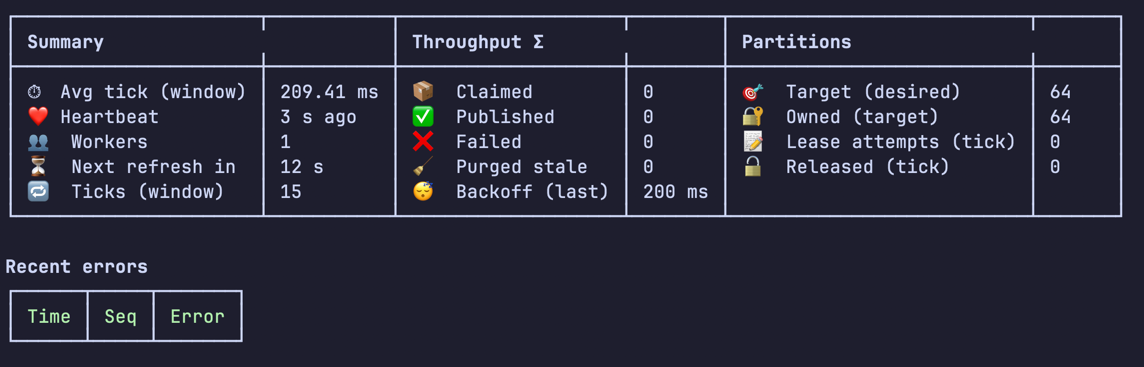

When run in a TTY, the command renders a compact UI showing:

  • Summary: avg tick duration (or last), last heartbeat age, active workers, next refresh timer, tick count in window.
  • Throughput: claimed / published / failed in the current tick or window, purge count, last backoff.
  • Partitions: desired (target), owned, lease attempts, released in the last tick.
  • Recent errors: a small rolling buffer of the latest failures (time, sequence, message).

For a full overview of outbox concepts, see /concepts/outbox-worker.

The UI adapts to terminal width: three columns (wide), two columns (medium), or stacked sections (narrow).

bash
php artisan pillar:outbox:work

Dashboard

Behavior highlights ​

  • Leasing: with leasing = true, the runner divides partitions among active workers (stable modulo). It leases, renews, and releases partitions and heartbeats to remain active.
  • Fair work split: the tick splits batch_size fairly across owned partitions.
  • Backoff: when a tick processes nothing, the runner sleeps idle_backoff_ms before continuing (cooperative backoff).
  • Purge stale: stale worker rows are purged opportunistically (rate‑limited via cache).

Where this fits in Pillar ​

The outbox worker is part of Pillar’s delivery pipeline: aggregate roots emit events → they land in the transactional outbox → the worker claims and publishes them → projectors and external systems receive them.
See: /concepts/events and /concepts/projectors.

Lease & claim internals (DB‑native, cooperative) ​

Pillar’s worker coordination is implemented entirely in the database—no separate coordinator service:

  • Cooperative leasing: Each partition (e.g., p00..p63) has a lease row in outbox_partitions. Workers acquire/renew leases by updating lease_owner and lease_until using the DB clock. If a worker dies, leases naturally expire.
  • Dynamic discovery: Active workers are tracked in outbox_workers with a heartbeat_until timestamp. The runner computes its target partitions via a stable modulo over the sorted list of active worker ids, so load rebalances automatically as workers join/leave.
  • Per‑partition ordering: With leasing enabled, at most one worker processes a given partition at a time, preserving order within that partition.

Database‑specific optimizations ​

To claim outbox rows, the worker uses the most efficient path for your driver:

  • PostgreSQL & SQLite: Single‑statement UPDATE … RETURNING performs the selection and claim atomically and returns the claimed rows in one round‑trip.
  • MySQL: A fast two‑step approach: a SELECT determines candidate ids; then an UPDATE … JOIN stamps a claim_token and bumps available_at. The batch is fetched by that token. Despite two statements, this is still **very performant ** with proper indexes.

The outbox worker uses the same partitioning strategy as the event store (via StreamPartitioner), but outbox partition keys are independent of stream IDs. This ensures even distribution regardless of aggregate hotspots.

All paths use DB‑derived timestamps to avoid app clock drift between worker nodes.

Claim vs. lease ​

  • Leases (in outbox_partitions) control which partitions a worker is allowed to pull from.
  • Claims (in outbox) are short, per‑row holds (via claim_token / available_at bump) that prevent duplicate delivery while a batch is being processed.

Configuration reference ​

See the full list of options (partitioning, worker timings, table names, partitioner strategy) in the configuration docs: /reference/configuration#outbox.

Worker lifecycle ​

A worker tick performs:

  1. Heartbeat renewal
  2. Lease acquisition/renewal (if enabled)
  3. Claiming batches
  4. Publishing events
  5. Backoff if idle
  6. Optional purge of stale workers

Output modes ​

  • Human UI (default, TTY)
  • One‑line summary (non‑interactive, no --json)
  • JSON per tick (--json), containing counts, durations, and partition info

Example JSON line:

json
{
  "claimed": 10,
  "published": 10,
  "failed": 0,
  "duration_ms": 3.12,
  "backoff_ms": 0,
  "renewed_heartbeat": true,
  "purged_stale": 0,
  "active_workers": 1,
  "desired_count": 64,
  "owned_count": 64,
  "leased_count": 0,
  "released_count": 0,
  "ts": "2025-11-12T00:00:00Z"
}

⚠️ Changing partition_count ​

If you change pillar.outbox.partition_count, you must sync the lease keyspace so the outbox_partitions table matches your new configuration:

bash
php artisan pillar:outbox:partitions:sync --prune

Why this matters

  • The set of partition labels (e.g., p00..p63) is derived from partition_count. Workers only lease partitions that exist in outbox_partitions.
  • Changing partition_count changes the hash-to-partition mapping for future events. Existing outbox rows keep their original partition_key.

Ramifications & safe procedure

  • Increasing the count: safe. Run the sync command (with --prune) to create the new partitions. Workers will rebalance automatically.
  • Decreasing the count: take care to avoid stranded rows in “old” partitions.
    • With leasing enabled, workers won’t target partitions that no longer exist in outbox_partitions.
    • Recommended procedure:
      1. Run pillar:outbox:partitions:sync without --prune first. This creates the new keyspace but keeps the old partitions.
      2. Let workers drain any remaining messages in the old partitions (watch the UI).
      3. When old partitions are empty, run pillar:outbox:partitions:sync --prune to remove them.
    • Alternative: temporarily run the worker with --no-leasing (or set worker.leasing=false) to process all rows regardless of partition leases, then switch back and prune.

Notes

  • The UI’s partitions view reflects outbox_partitions; re‑run the sync command after a config change so the UI matches.
  • Event streams are unaffected; only outbox leasing/claiming is impacted.

Operational tips ​

  • Keep handler side‑effects idempotent (outbox is at‑least‑once).
  • For single instance deployments, you can disable leasing and just run one worker.
  • If you scale horizontally, set partition_count to a power of two and let workers auto‑balance via leasing.
  • Use --window to get more meaningful throughput numbers in the interactive UI.
