📊 Pillar Stream Browser (UI)

A built‑in, batteries‑included UI for exploring your event store:

• Browse recently updated streams
• Inspect event payloads (with upcasters applied)
• Time‑travel a stream to see its exact state as of a given event

Related Reading

• Event Store
• Events
• Event Window
• Aggregate IDs
• Outbox
• Outbox Worker

The Stream Browser can be used during local development and production. It respects your app’s authentication and adds an opt‑in authorization check tailored for Pillar.

---

✨ Screenshots

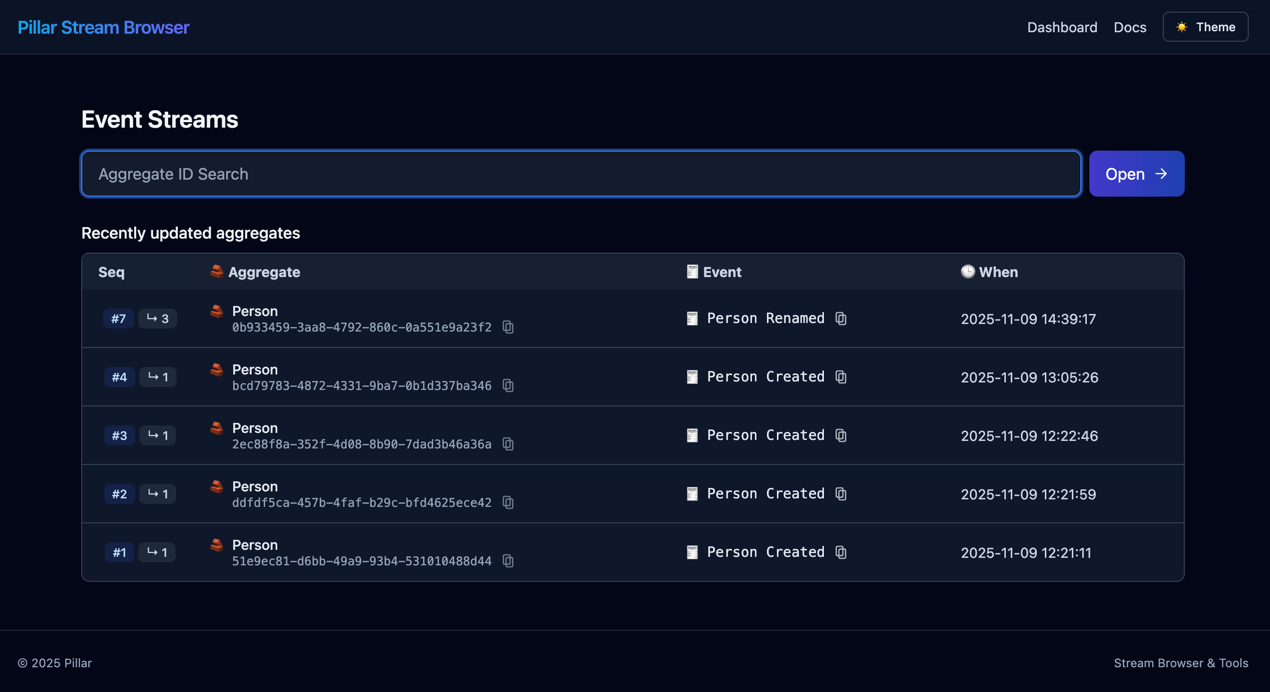

Dashboard (recent streams):

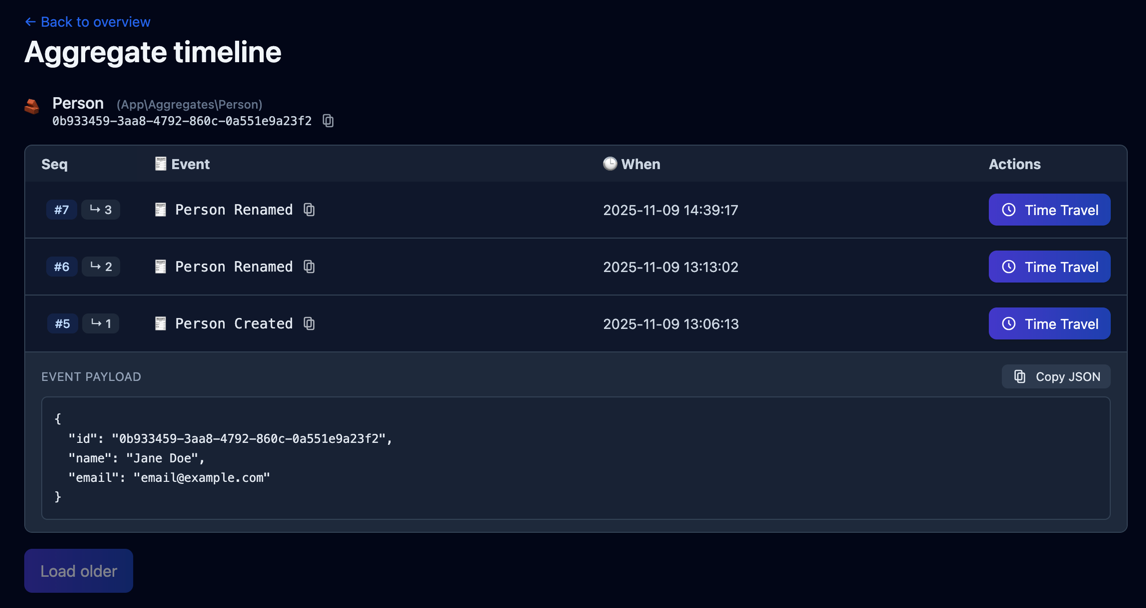

Stream timeline with event data explorer:

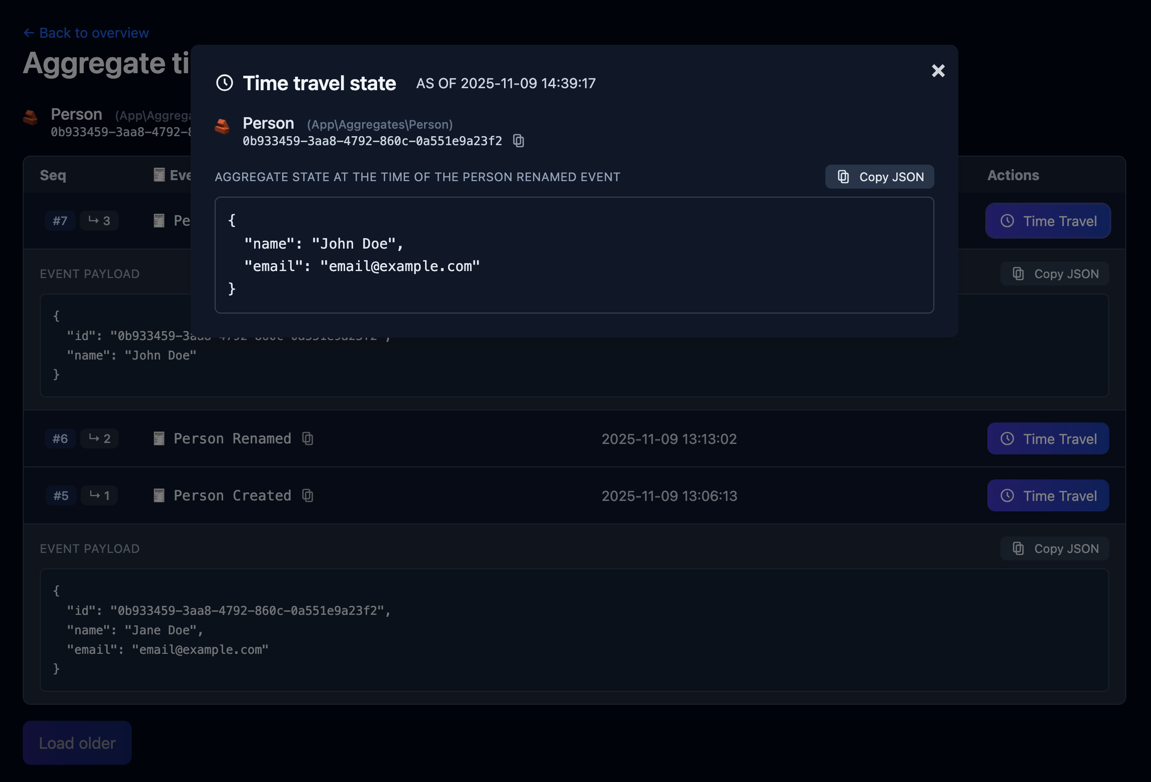

Time travel to show full aggregate state at the selected event:

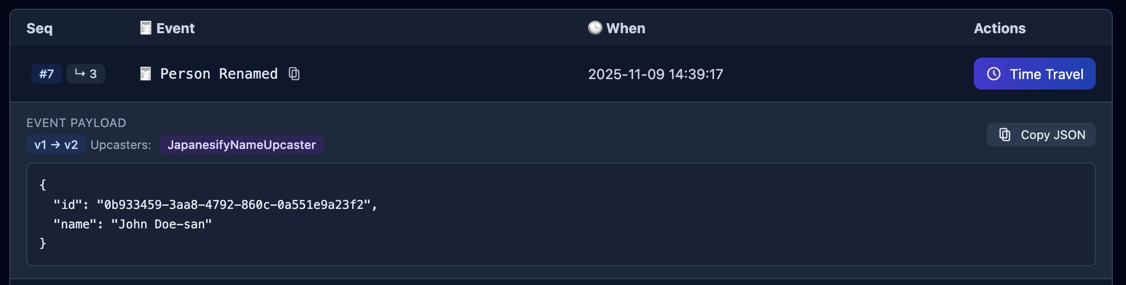

Upcasters applied to event payloads are visualized:

---

🚀 Quick start

1. Enable the UI

By default the UI is enabled and mounted at /pillar. You can switch it off globally:

# .env
PILLAR_UI = true         # default: true
PILLAR_UI_PATH = pillar  # default: "pillar" → /pillar

2. Access locally, no extra auth

In environments listed in skip_auth_in (default: local), the UI skips both authentication and the Pillar‑specific check so you can use it immediately:

# .env
PILLAR_UI_SKIP_AUTH_IN = local,testing

3. Access in other environments

Outside of the “skip” environments, the visiting user must be authenticated (via your chosen guard) and must pass the PillarUser check (see below).

---

🔐 Access control

PillarUser interface

To control who can open the Stream Browser, implement this interface on your user model:

<?php
declare(strict_types=1);

namespace Pillar\Security;

interface PillarUser
{
    /**
     * Return true if this user is allowed to access the Pillar UI.
     */
    public function canAccessPillar(): bool;
}

HasPillarAccess trait (allow by default)

For a quick, permissive setup you can opt in all authenticated users:

<?php
declare(strict_types=1);

namespace Pillar\Security;

trait HasPillarAccess
{
    public function canAccessPillar(): bool
    {
        return true;
    }
}

Add the trait to your App\Models\User (or implement custom logic in canAccessPillar()).

Guard & skip‑auth environments

• Guard (defaults to web): which Laravel guard the UI uses to resolve the current user in protected environments.
• Skip auth in …: environments where both authentication and the PillarUser check are bypassed (handy for local and CI).

# .env
PILLAR_UI_GUARD = web
PILLAR_UI_SKIP_AUTH_IN = local,testing

Behavior matrix:

Environment	Auth required	PillarUser required	Notes
in skip_auth_in	No	No	Great for local dev
not in skip_auth_in	Yes	Yes	Production‑friendly

---

⚙️ Configuration

Everything lives under pillar.ui in config/pillar.php:

/*
|--------------------------------------------------------------------------
| 📊 Pillar UI
|--------------------------------------------------------------------------
| Controls the built-in event explorer / timeline UI.
| Outside the environments listed in `skip_auth_in`, access requires an
| authenticated user that implements Pillar\Security\PillarUser and returns
| true from canAccessPillar().
*/
'ui' => [
    /*
    |--------------------------------------------------------------------------
    | Master switch
    |--------------------------------------------------------------------------
    | If false, the UI is not mounted (routes/views aren’t registered).
    */
    'enabled' => env('PILLAR_UI', true),

    /*
    |--------------------------------------------------------------------------
    | 🔓 Skip auth in these environments
    |--------------------------------------------------------------------------
    | Accepts a comma-separated string or an array. In these environments BOTH
    | authentication and PillarUser checks are bypassed (handy for local dev).
    |
    | .env example:
    |   PILLAR_UI_SKIP_AUTH_IN=local,testing
    */
    'skip_auth_in' => env('PILLAR_UI_SKIP_AUTH_IN', 'local'),

    /*
    |--------------------------------------------------------------------------
    | 🛡️ Auth guard used for access checks
    |--------------------------------------------------------------------------
    | Which guard to use to resolve the current user when the UI is protected.
    | Examples: "web" (session), "sanctum", or "api" (token).
    */
    'guard' => env('PILLAR_UI_GUARD', 'web'),

    /*
    |--------------------------------------------------------------------------
    | 🔗 Mount path
    |--------------------------------------------------------------------------
    | Base path where the UI is served. Do NOT include a leading slash.
    | The UI will be reachable at "/{path}" (e.g. "/pillar").
    */
    'path' => env('PILLAR_UI_PATH', 'pillar'),

    /*
    |--------------------------------------------------------------------------
    | 📜 Pagination & lists
    |--------------------------------------------------------------------------
    | page_size:     events per API page (server may cap this)
    | recent_limit:  how many “recent streams” to show on the landing page
    */
    'page_size' => 100,
    'recent_limit' => 20,
],

Default mount point: /{path} → /pillar out of the box.

---

🧭 Navigation & routes

All routes are nested under the configured path and namespaced pillar.ui.*.

• Dashboard (HTML)

  • GET /{path} → route name: pillar.ui.index
    Recent streams + search by stream_id.

• Stream page (HTML)

  • GET /{path}/aggregate → route name: pillar.ui.aggregate.show
    Shows timeline for ?id=STREAM_ID.

• API

  • Recent overview: GET /{path}/api/recent → pillar.ui.api.recent
    Returns the latest events per stream (includes resolved aggregate type when available).
  • Events for one stream: GET /{path}/api/aggregate/events?stream_id=STREAM_ID[&before_seq=N&limit=M]
    → pillar.ui.api.aggregate.events
  • Time travel (state as of event):
    GET /{path}/api/aggregate/state?stream_id=STREAM_ID&to_stream_seq=N
    → pillar.ui.api.aggregate.state

These APIs are used by the UI, but you can also script against them for tooling.

---

⏳ Time travel (how it works)

When you click Time travel next to an event, the UI asks the backend to rebuild the stream **up to and including ** that event. Under the hood we use an EventWindow bound:

• toStreamSequence = N (inclusive)
• plus an afterStreamSequence cursor set by the event store / reader to your latest snapshot (if any), for efficiency

This gives you the exact state after event N—useful for debugging and audits.

---

🧩 Tips & troubleshooting

• 404 at /pillar
  Set PILLAR_UI=true or ensure your pillar.ui.enabled config is true.

• 401 at /pillar
  You’re not in a “skip” environment; make sure you’re authenticated via the configured guard and your user implements PillarUser (or uses the HasPillarAccess trait returning true).

• Changing the URL
  Use PILLAR_UI_PATH=my-pillar to serve at /my-pillar.

• Large timelines
  The API paginates by pillar.ui.page_size and the UI fetches additional pages on demand.

---

That’s it — open /pillar and enjoy the Stream Browser!
